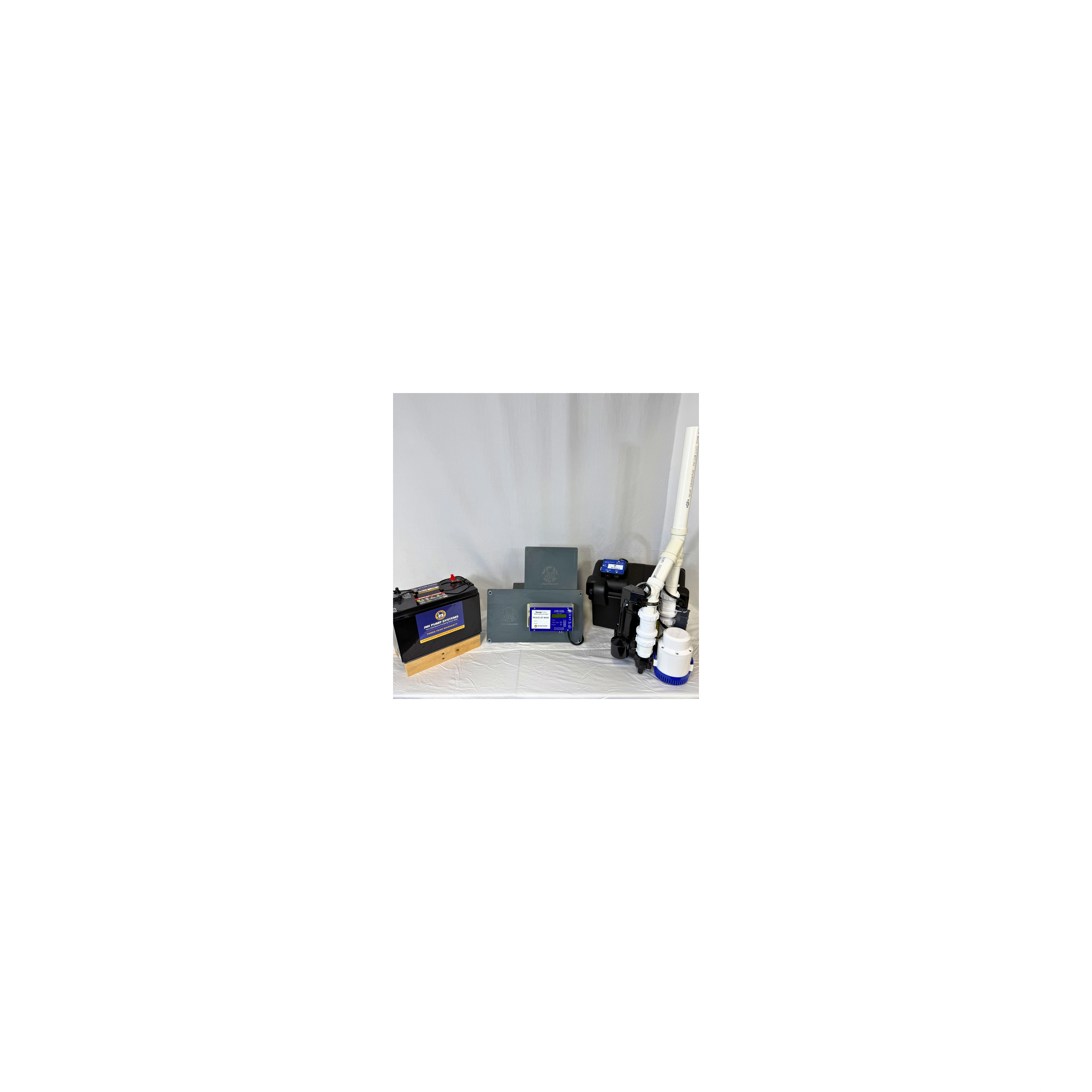

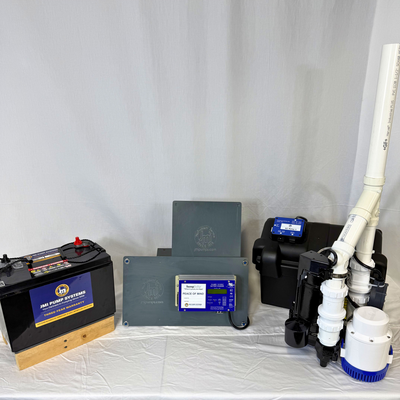

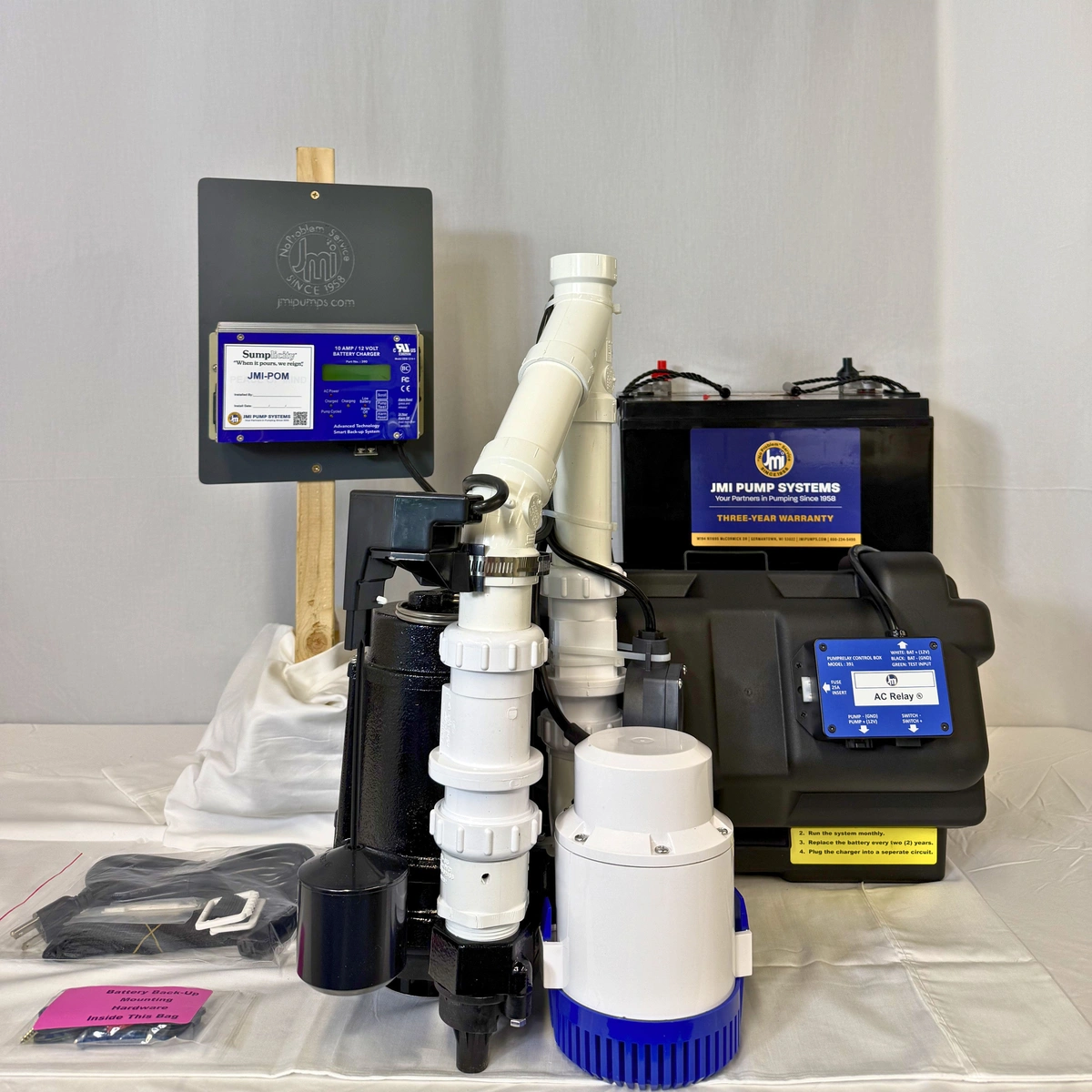

JMI-POM-VMAC-LW - SUMPLICITY SERIES; PRE-ASSEMBLED PRIMARY AC & BACKUP 12V PUMP SYSTEM; EC-VMAC & POM PUMPS, CHARGER, BATTERY BOX, (2) CHECK VALVE

10-Amp Controller

- Intelligent ‘4-Stage’ Charging

- Pre-programmed with your contact info

- Aux contacts for WiFi alarm

AC Relay Box

- Bypass allows continuous cycle of DC Pump when primary pump fails

- Battery remains fully charged; ideal for when storms in area cause intermittent outages

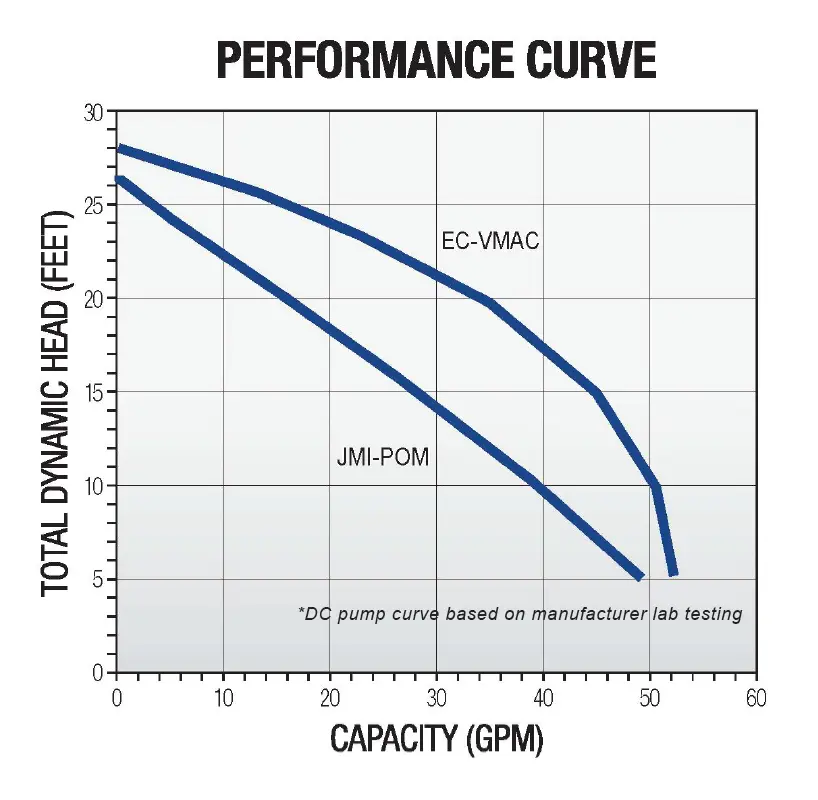

• PVL-EC-VMAC; 1/3 HP, AC primary pump 50 GPM / 3,000GPH @ 10’ TDH / Vertical style switch with piggyback plug

• JMI-POM; 12V, DC, battery back-up pump 39 GPM / 2,340 GPH @ 10’ TDH / Diaphragm pressure switch

• Best in class 4-Stage, 10A Controller/Charger, AC Relay

• Bypass allows continuous cycle of DC pump when primary pump fails with AC power present

• Pre-programmed with contractor contact info

• Self-tests weekly • Recharged LW Battery 40+ times from empty in testing

• Fully recharged LW Battery from empty in 8-10 hours • Advanced LED Display tracks Run Count, Run Total, AC Fail # & displays alarm condition codes

• Auxiliary contacts for WiFi alarm

• Includes AZP-BATTERY-LW, Battery Box

• High performance AGM battery (maint. free); Group 29/31

• Includes (2) Check Valves, 1-1/2" Discharge Piping, Fittings, and PVC mounting kit (backplate, bolts / lags, washers) — compatible with vertical (8-1/2") & horizontal (16") orientation. Private label and stand available.

• UL approved charging system

• Three-year limited warranty
